Joint de précision simple série 6 – rotule sphéroïdale

  • rotule sphéroïdale
  • matière acier (11SMnPb 30 k)
  • angle mécanique maxi 35°
  • vitesse de rotation max 500 tr/mn
  • Possibilité de fabriquer sur mesure
  • Toutes longueurs sur demande



Un conseil technique ou un devis ?
Faites votre demande en ligne, c’est simple et gratuit.

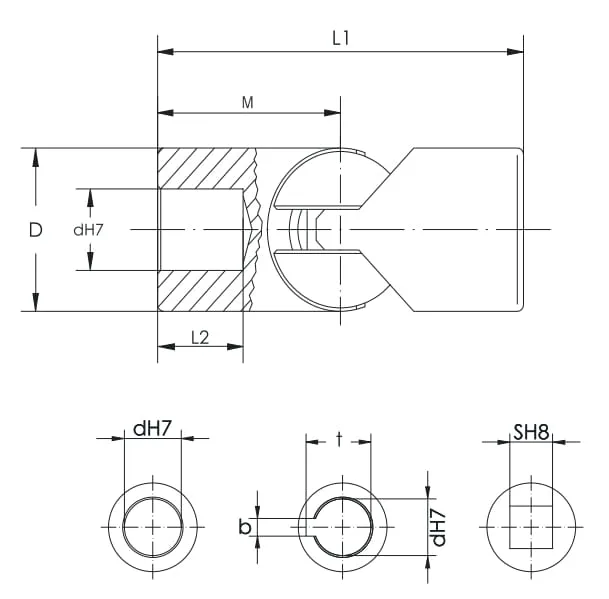

Cliquez sur l’image pour l’afficher en plus grand.

TYPEDdL2ML2abCarré SMdmax
6.13.41363517,5106
6.16.4168402010-8
6.20.42010502513311,41020
6.24.42412603014413,81230
6.28.42814703517516,31450
6.32.43216804019518,31660
6.36.43618904522620,818120
6.40.440201005024622,820160
6.45.445221105526624,822200
6.50.4502512562,530828,325290
6.55.4552513567,535833,330440
6.60.4603516582,5421038,332520
6.65.4654019095461243,336700
6.70.47045210105521453,840820
6.80.48050230115581453,842930
6.90.49060260130701864,4501060
6.96.4100702901452074,95412501250

Identique à : A5-34-6, M14B , 0.813.400, A5-34-8, M16B M18B, 0.816.400, A5-34-10, M20B, 0.820.400, 0.820.403, 0.820.404, A5-34-12, M24B, 0.824.400, 0.824.403, 0.824.404, A5-34-14, M28B, 0.828.400, 0.828.403, 0.828.404, A5-34-16, M32B, 0.832.400, 0.832.403, 0.832.404, A5-34-18, M36B, 0.836.400, 0.836.403, 0.836.404, A5-34-20, M40B, 0.840.400, 0.840.403, 0.840.404, A5-34-22, M45B, 0.845.400, 0.845.403, 0.845.404, A5-34-25, M50B, 0.850.400, 0.850.403, 0.850.404, A5-34-30, M55B, 0.855.400, 0.855.403, 0.855.404, A5-34-35, M60B, 0.860.400, 0.860.403, 0.860.404, A5-34-40, M65B, 0.865.400, 0.865.403, 0.865.404, A5-34-45, M70B, 0.870.400, 0.870.403, 0.870.404, M80B, 0.880.400, 0.880.403, 0.880.404, M90B, 0.890.400, 0.890.403, 0.890.404, M100B, 0.896.400, 0.896.403, 0.896.404, M110B, 0.897.400, 0.897.403, 0.897.404
