Joint de précision simple série 2 – bague externe
- bague externe durcie par trempe
- matière acier PR80
- angle mécanique maxi 45°
- vitesse de rotation max 800tr/mn
- sos
Un conseil technique ou un devis ?
Faites votre demande en ligne, c’est simple et gratuit.

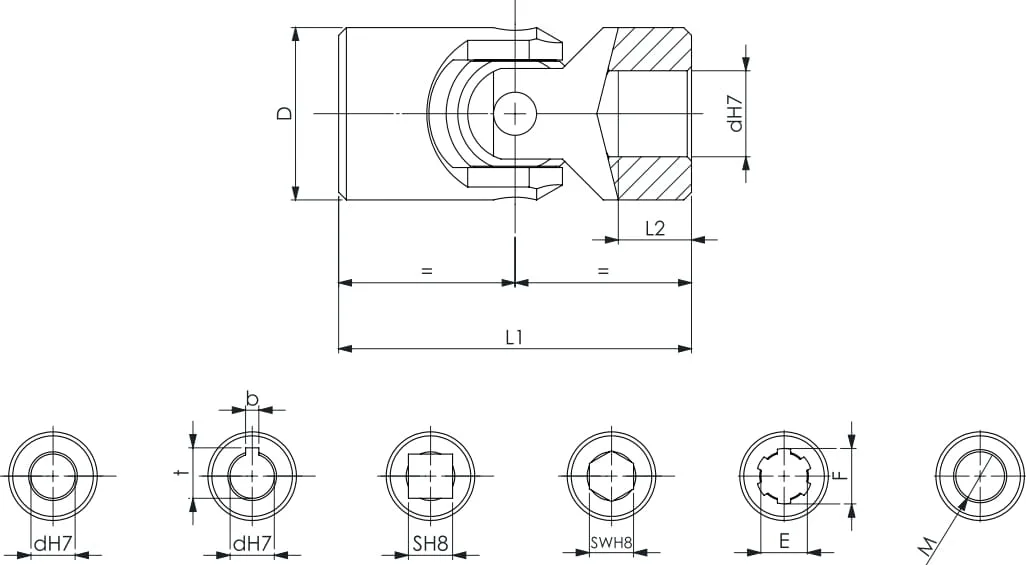

Cliquez sur l’image pour l’afficher en plus grand.
| TYPE | D | d | Lg mini | Lg maxi | C | a | b | Carré S | Hexa SW |
|---|---|---|---|---|---|---|---|---|---|
| 2.13.4 | 13 | 6 | 34 | - | 9 | - | - | 6 | 6 |
| 2.16.4 | 16 | 8 | 40 | 58 | 11 | 2 | 9 | 8 | 8 |
| 2.22.4 | 22 | 10 | 45 | 76 | 10 | 3 | 11,4 | 10 | 10 |
| 2.20.4 | 20 | 10 | 45 | 62 | 10 | 3 | 11,4 | 10 | 10 |
| 2.25.4 | 25 | 12 | 50 | 86 | 11 | 4 | 13,8 | 12 | 12 |
| 2.29.4 | 29 | 14 | 56 | 90 | 13 | 5 | 16,3 | 14 | 14 |
| 2.32.4 | 32 | 16 | 65 | 95 | 15 | 5 | 18,3 | 16 | 16 |
| 2.37.4 | 37 | 18 | 72 | 108 | 17 | 6 | 20,8 | 18 | 18 |
| 2.40.4 | 40 | 20 | 82 | 127 | 19 | 6 | 22,8 | 20 | 20 |
| 2.47.4 | 47 | 22 | 95 | 127 | 22 | 6 | 24,8 | 22 | 22 |
| 2.50.4 | 50 | 25 | 108 | 140 | 26 | 8 | 28,3 | 25 | 25 |
| 2.58.4 | 58 | 30 | 122 | 178 | 30 | 8 | 33,3 | 30 | 30 |
| 2.63.4 | 63 | 32 | 130 | - | 30 | 10 | 35,3 | ||
| 2.70.4 | 70 | 35 | 140 | - | 35 | 10 | 38,3 | - | |
| 2.80.4 | 80 | 40 | 160 | - | 42 | 12 | 43,3 | - | |
| 2.95.4 | 95 | 50 | 190 | - | 54 | 14 | 53,8 | - |
Identique à : 101A, A5-471-6, 0.713.400, 0.713.403, 0.713.404, 0.716.411PC16-6, 102A, A5-471-8, 23403-110048, 0.716.400, 0.716.403, 0.716.404, 0.716.410, 0.716.413, 0.716.414, PC16-8, 103A, A5-471-10, 0.720.400, 0.720.403, 0.720.404, 0.720.410, 0.720.413, 0.720.414, PC22, 103/1A, 23403-110048, , 104A, A5-471-12, 23403-112056, 0.725.400, 0.725.403, 0.725.404, 0.725.410, 0.725.413, 0.725.414, PC25, 105A, A5-471-14, 0.730.400, 0.730.403, 0.730.404, 0.730.410, 0.730.413, 0.730.414, PC29, 106A, A5-471-16, 23403-116068, PC32, 107A, A5-471-18, PC37, 108A, A5-471-20, 23403-120082, 0.740.400, 0.740.403, 0.740.404, 0.740.410, 0.740.413, 0.740.414, PC40, 109A, A5-471-22, 0.750.400, 0.750.403, 0.750.404, 0.750.410, 0.750.413, 0.750.414, PC47, 110A, A5-471-25, 23403-125104, PC50, 111A, A5-471-30, PC58, 111/1A, 0.763.400, 0.763.403, 0.763.404, 0.763.410, 0.763.413, 0.763.414, PC58, 112A, A5-471-35, PC70, 113A, A5-471-40, PC80, 114A, PC95,
