Joint de précision télescopique série 6 – rotule sphéroïdale

  • rotule sphéroïdale
  • matière acier (11SMnPb 30 k)
  • angle mécanique maxi 35°
  • vitesse de rotation max 500 tr/mn
  • Possibilité de fabriquer sur mesure
  • Toutes longueurs sur demande



Un conseil technique ou un devis ?
Faites votre demande en ligne, c’est simple et gratuit.

Cliquez sur l’image pour l’afficher en plus grand.

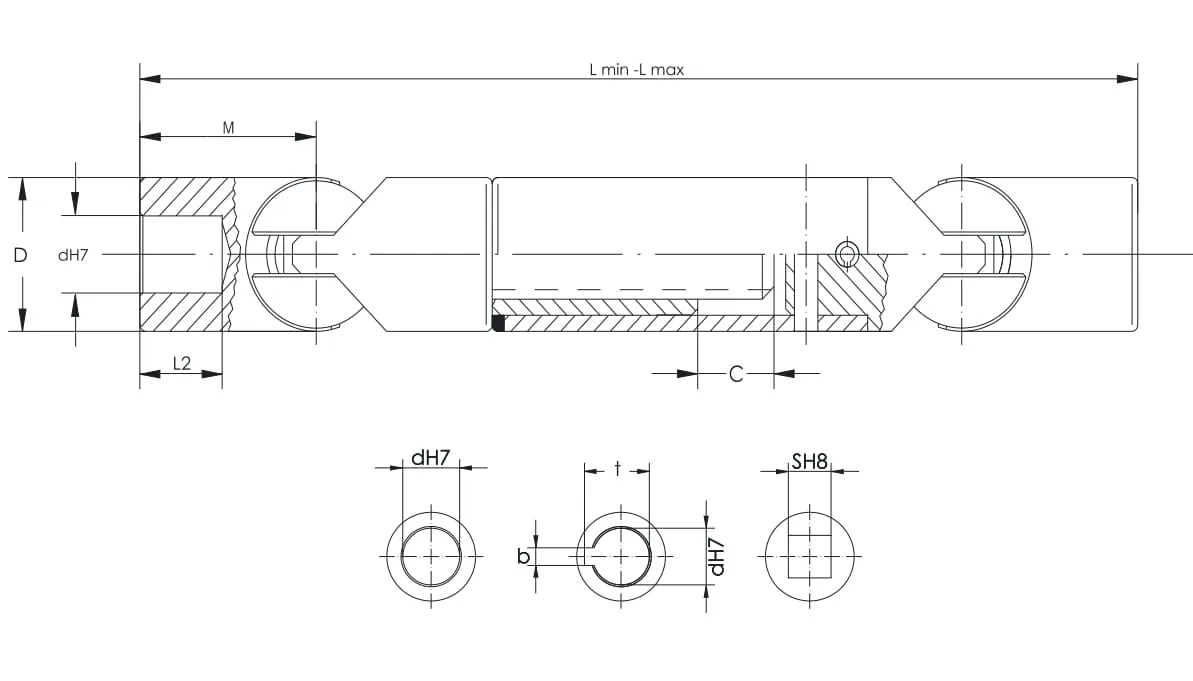

TYPEDdML2Lg miniLg maxiCourseProfil canneluresabCarré SMdmax
6.20.2201025131501702011x14 Z6311,41020
6.20.2201025131702104011x14 Z6311,41020
6.20.2201025132002707011x14 Z6311,41020
6.24.2241230141701952511x14 Z6413,81230
6.24.2241230142002555511x14 Z6413,81230
6.24.2241230142202957511x14 Z6413,81230
6.28.2281435172202503016x20 Z6516,31450
6.28.2281435172503106016x20 Z6516,31450
6.28.2281435172803709016x20 Z6516,31450
6.32.2321640192202503016x20 Z6518,31660
6.32.2321640192503106016x20 Z6518,31660
6.32.2321640192803709016x20 Z6518,31660
6.36.2361845222502853518x22 Z6620,818120
6.36.2361845222803456518x22 Z6620,818120
6.36.2361845223003858518x22 Z6620,818120
6.40.2402050242803204021x25 Z6622,820160
6.40.2402050243003606021x25 Z6622,820160
6.40.24020502435046011021x25 Z6622,820160
6.45.2452255263003404021x25 Z6624,822200
6.45.2452255263504409021x25 Z6624,822200
6.45.24522552640054014021x25 Z6624,822200
6.50.2502562,5303504005028x32 Z6828,325290
6.50.2502562,53040050010028x32 Z6828,325290
6.50.2502562,53045060015028x32 Z6828,325290
6.55.2553067,5354004505028x32 Z6833,330440
6.55.2553067,53545055010028x32 Z6833,330440
6.55.2553067,53550066016028x32 Z6833,330440
6.60.2603582,5424505005036x42 Z61038,332520
6.60.2603582,54250060010036x42 Z61038,332520
6.60.2603582,54258076018036x42 Z61038,332520
6.65.2654095465205907036x42 Z61243,336700
6.65.26540954655065010036x42 Z61243,336700
6.65.26540954663081018036x42 Z61243,336700
6.70.27045105525806507044x52 Z181453,830820
6.70.270451055263075012044x52 Z181453,830820
6.70.270451055270089019044x52 Z181453,830820
6.80.28050115586307007050x58 Z181453,842930
6.80.280501155870084014050x58 Z191453,842930
6.80.2805011558800104024050x58 Z201453,842930
6.90.29060130707007707054x62 Z201864,4501060
6.90.290601307080097017054x62 Z211864,4501060
6.90.2906013070900117027054x62 Z221864,4501060
6.96.2100701458080090010062x54 Z202074,9541250
6.96.21007014580900110020062x54 Z212074,9541250
6.96.210070145801000130030062x54 Z222074,9541250

Identique à : A5-35-10, 0.820.100, 0.820.103, 0.820.104, A5-35-12, 0.824.100, 0.824.103, 0.824.104, A5-35-14, 0.828.100, 0.828.103, 0.828.104, A5-35-16, 0.832.100, 0.832.103, 0.832.104, A5-35-18, 0.836.100, 0.836.103, 0.836.104, A5-35-20, 0.830.100, 0.830.103, 0.830.104, A5-35-22, 0.845.100, 0.845.103, 0.845.104, A5-35-25, 0.850.100, 0.850.103, 0.850.104, A5-35-30, 0.855.100, 0.855.103, 0.855.104, A5-35-35, 0.860.100, 0.860.103, 0.860.104, A5-35-40, 0.865.100, 0.865.103, 0.865.104, A5-35-45, 0.870.100, 0.870.103, 0.870.104, A5-35-50, 0.880.100, 0.880.103, 0.880.104, 0.890.100, 0.890.103, 0.890.104, 0.896.100, 0.896.103, 0.896.104
