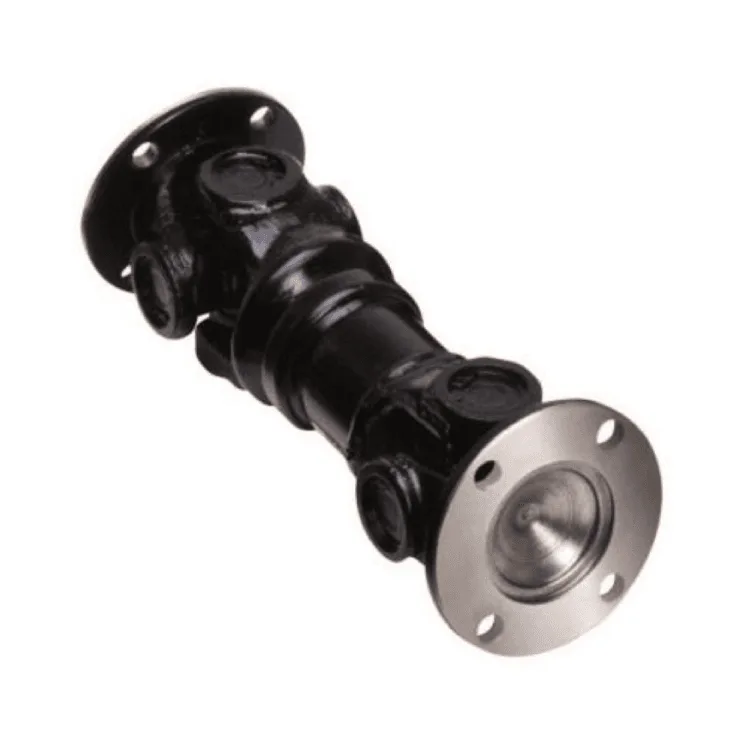

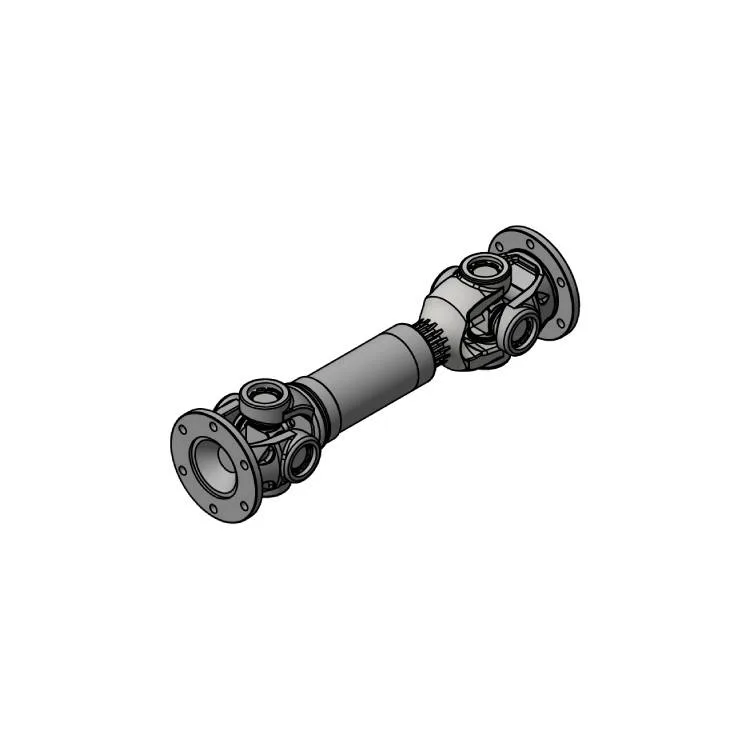

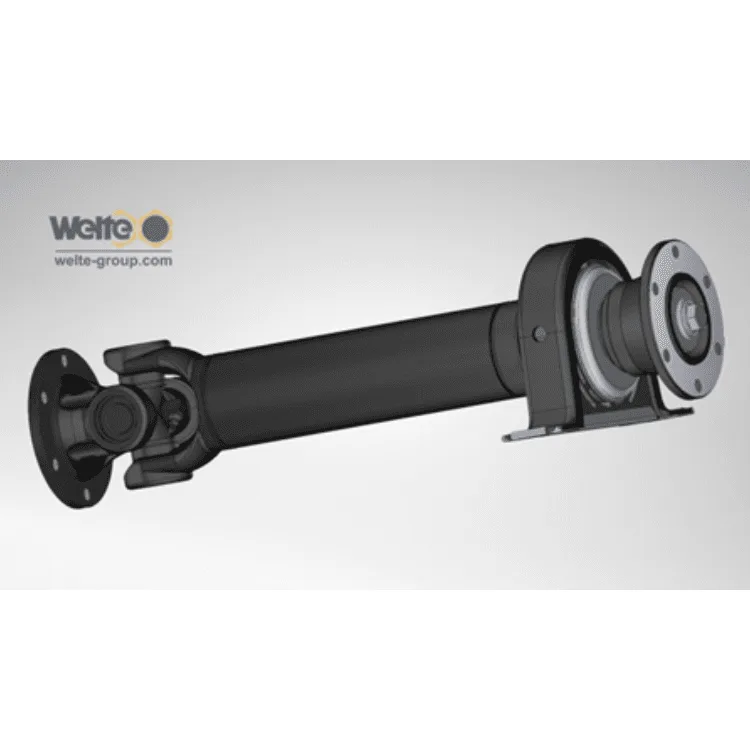

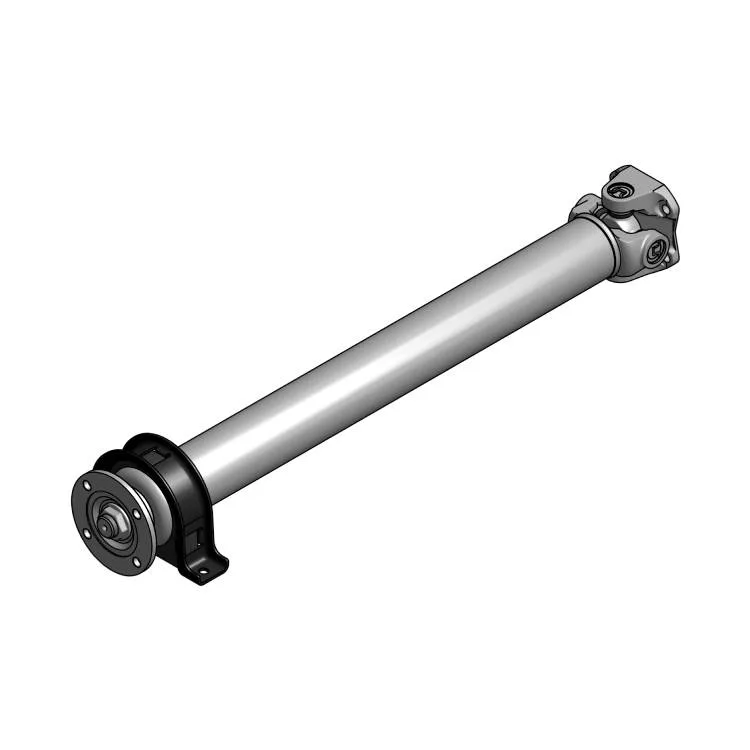

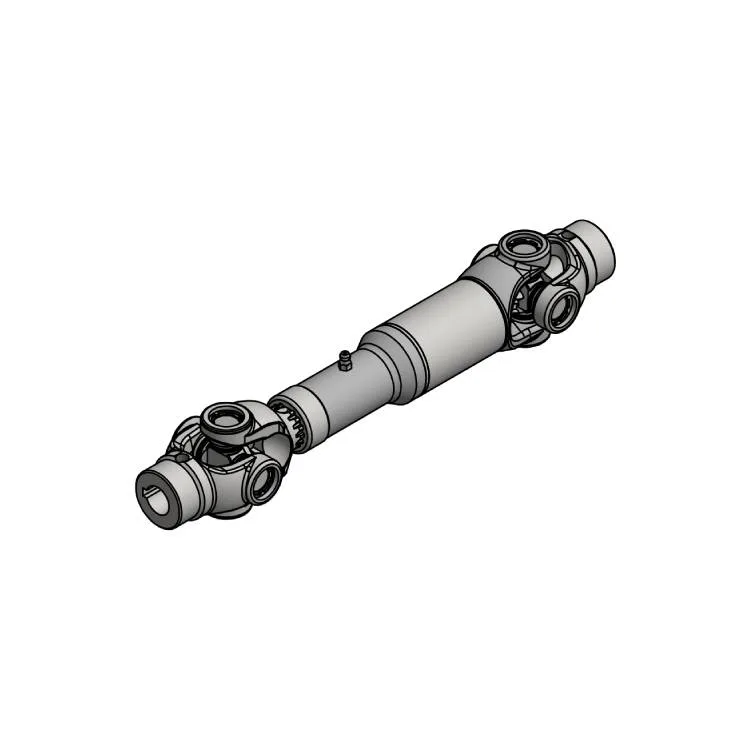

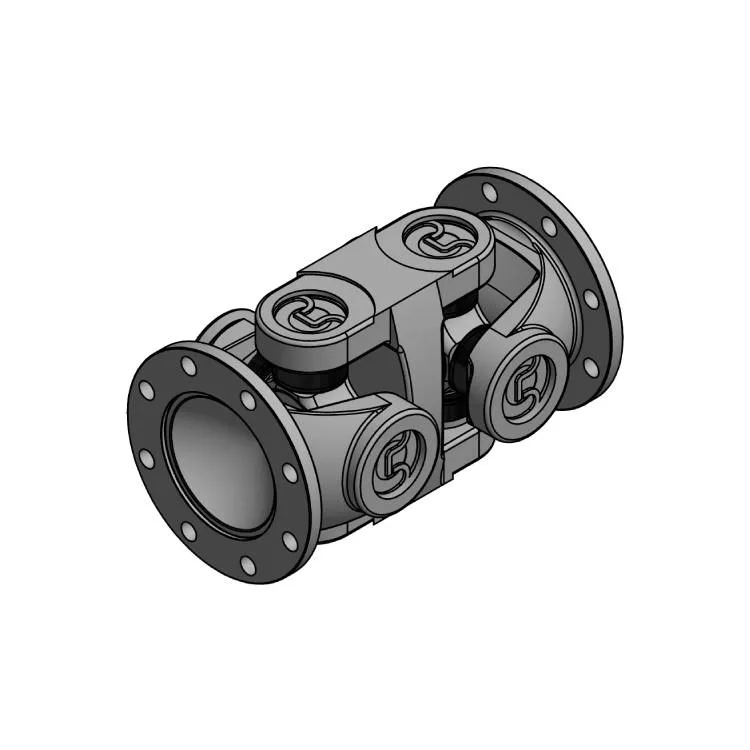

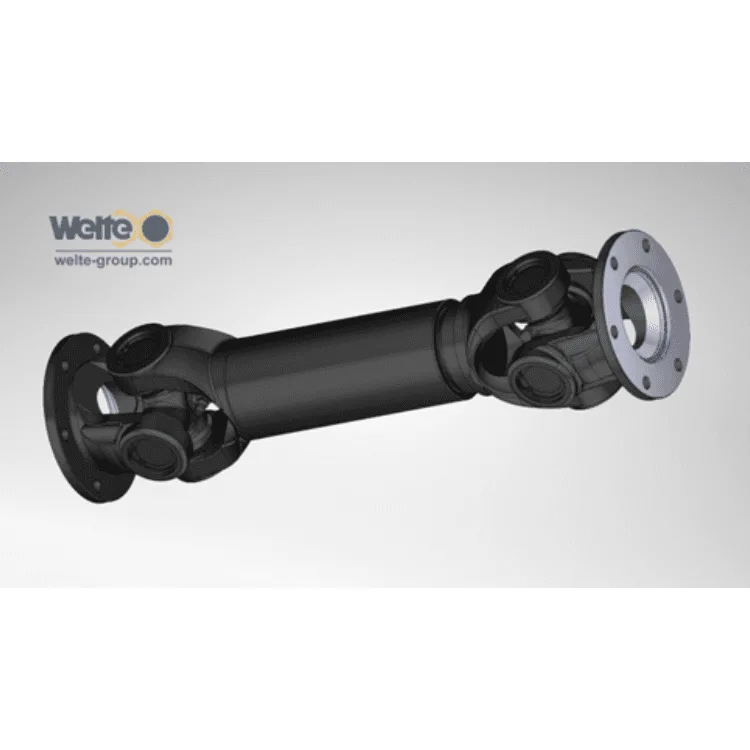

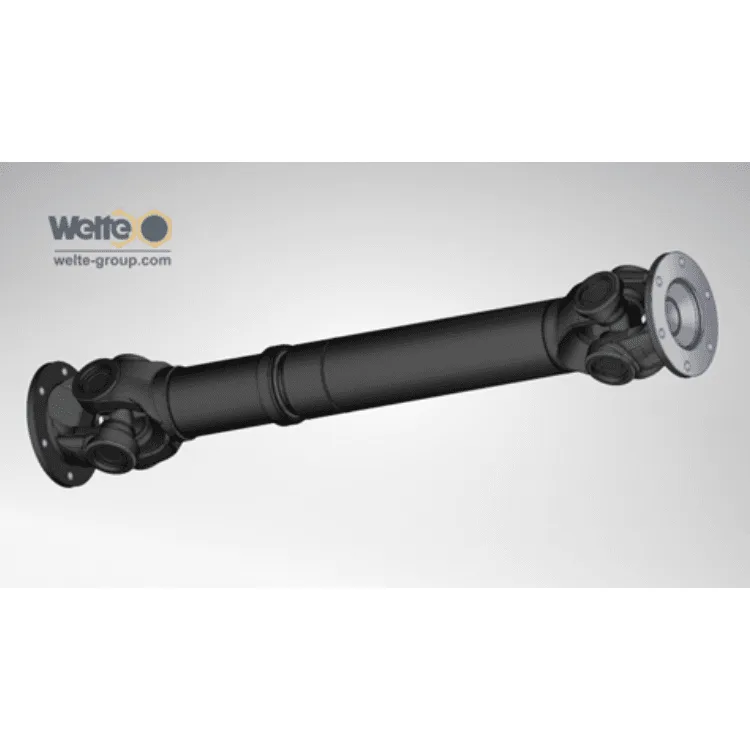

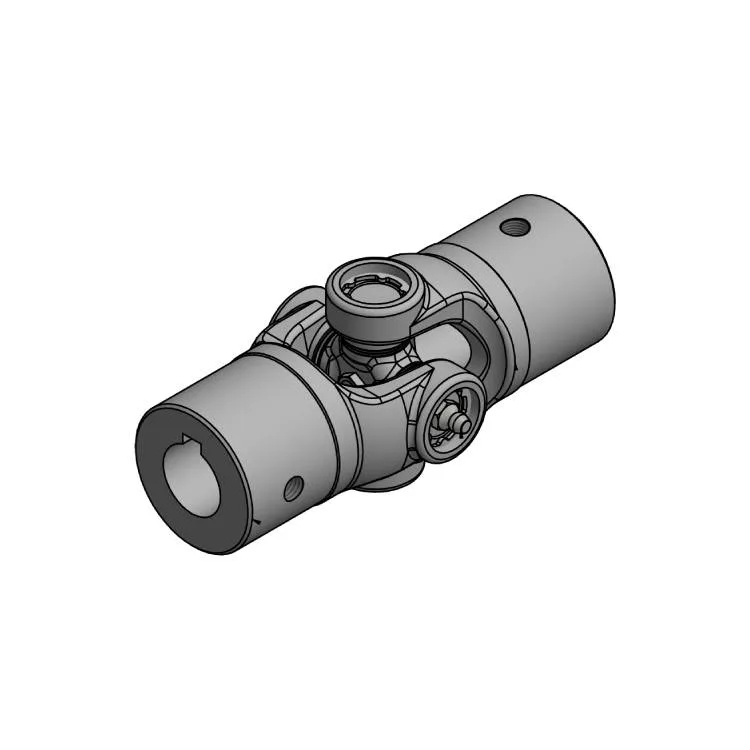

Series 101 – Series 102

Technical Data

TCS torque range: 150 Nm – 2,500 Nm

Flange diameter: 58 mm to 150 mm

Bore diameter: from 20 mm to 35 mm (custom bores possible)

Sliding from 40 mm to 110 mm, with long sliding option (study on request)

Operating angle up to 35°.

Possible transmission profile :

• short sliding transmission
• tubular sliding transmission
• bearing transmission
• fixed tubular drive
• single joint
• double joint

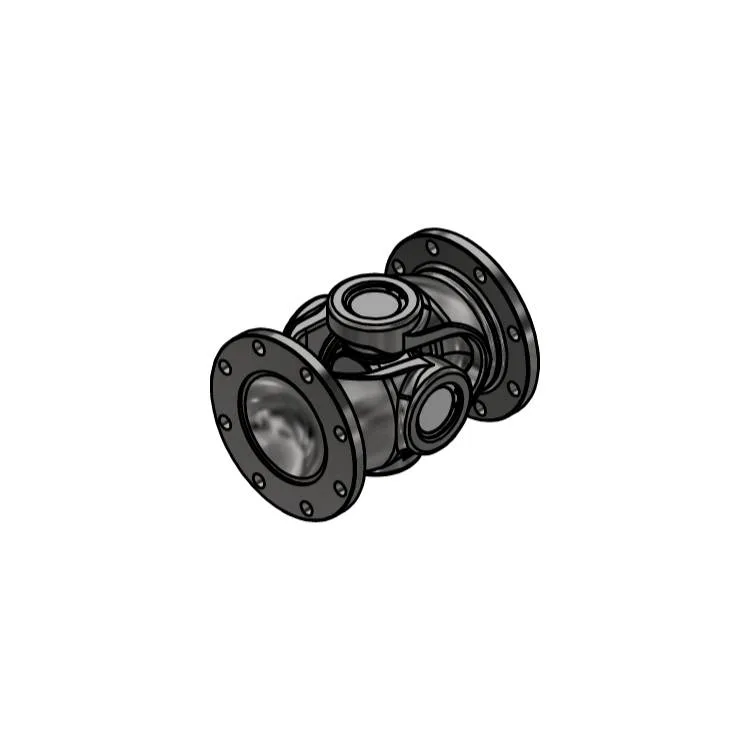

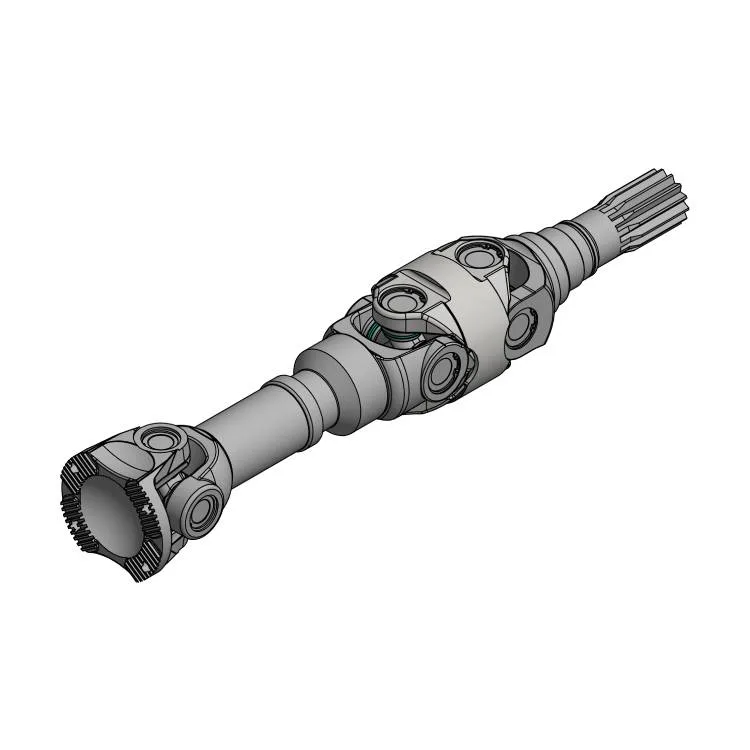

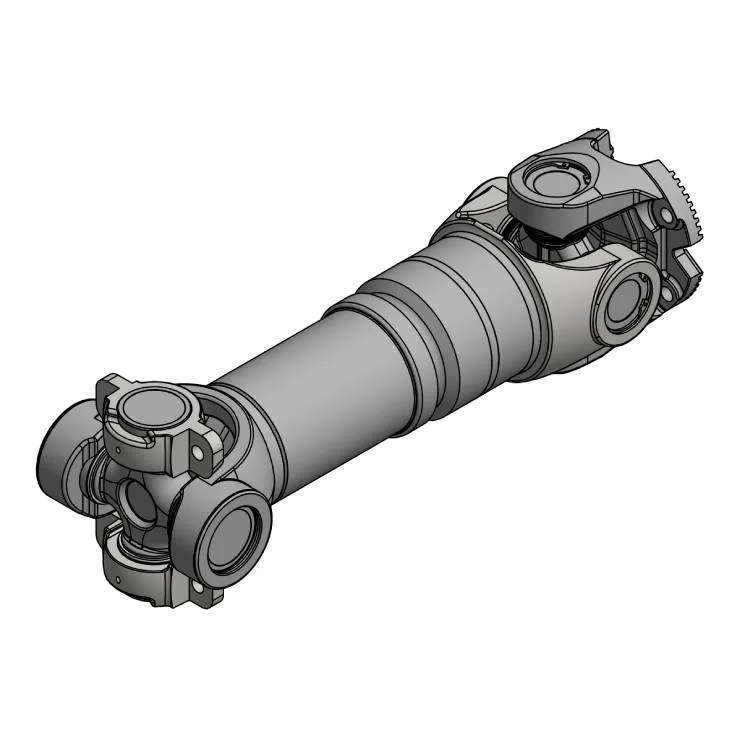

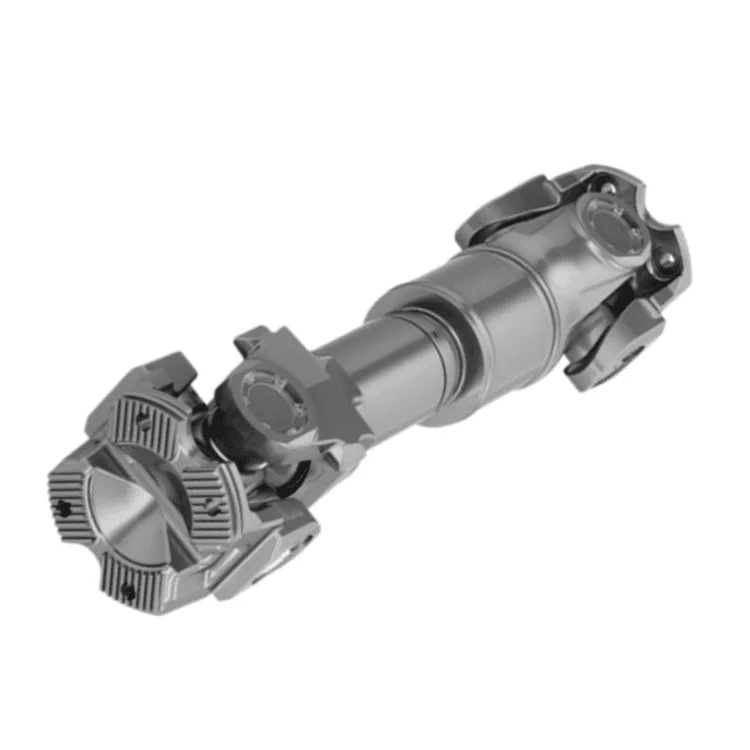

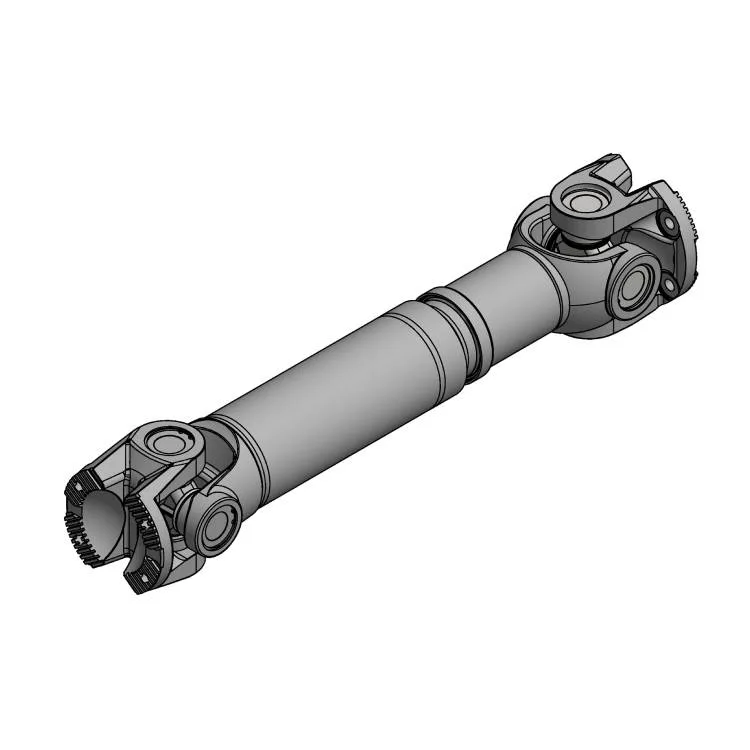

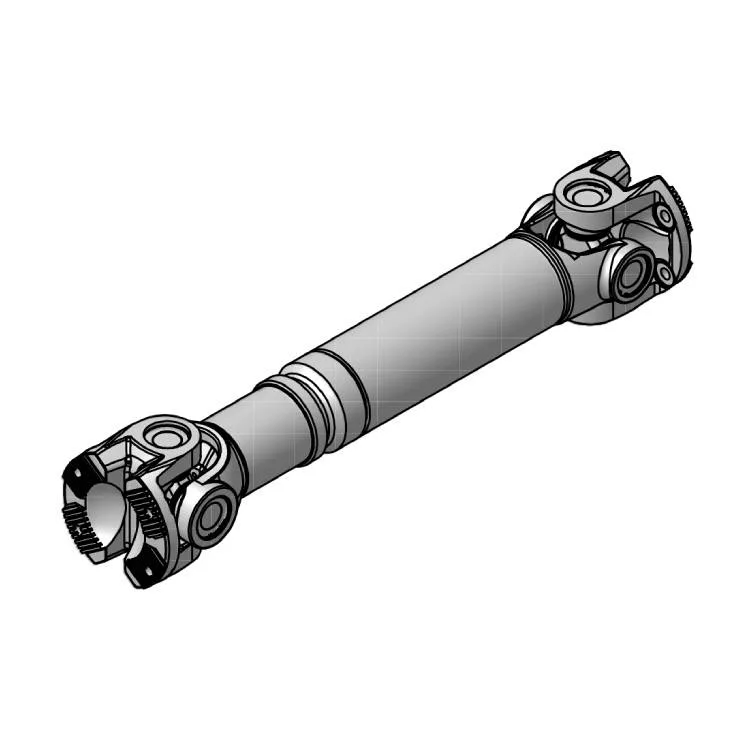

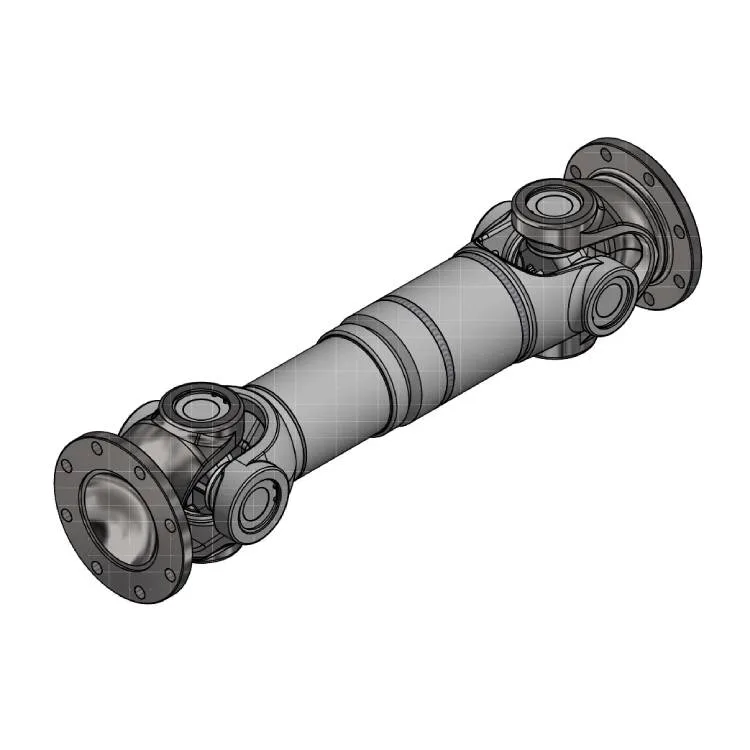

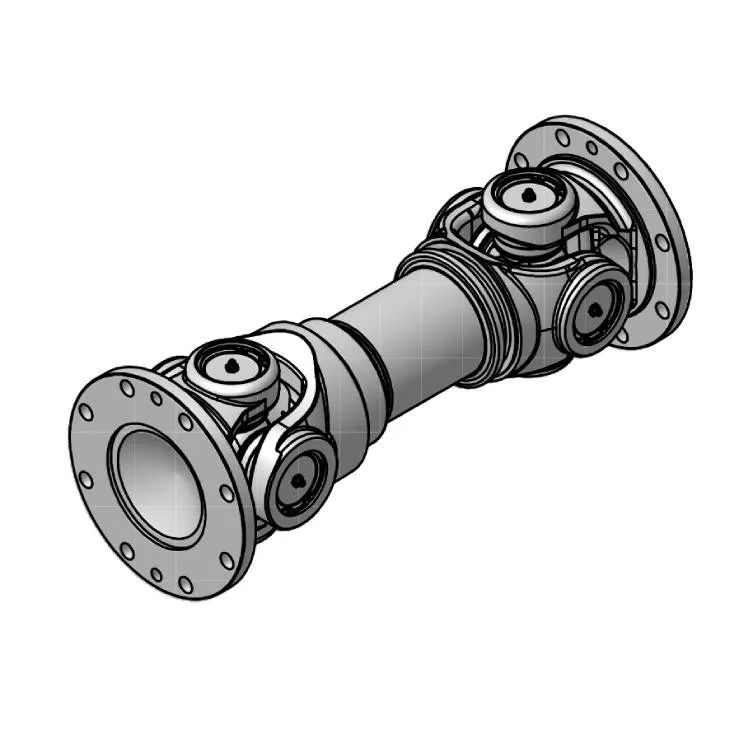

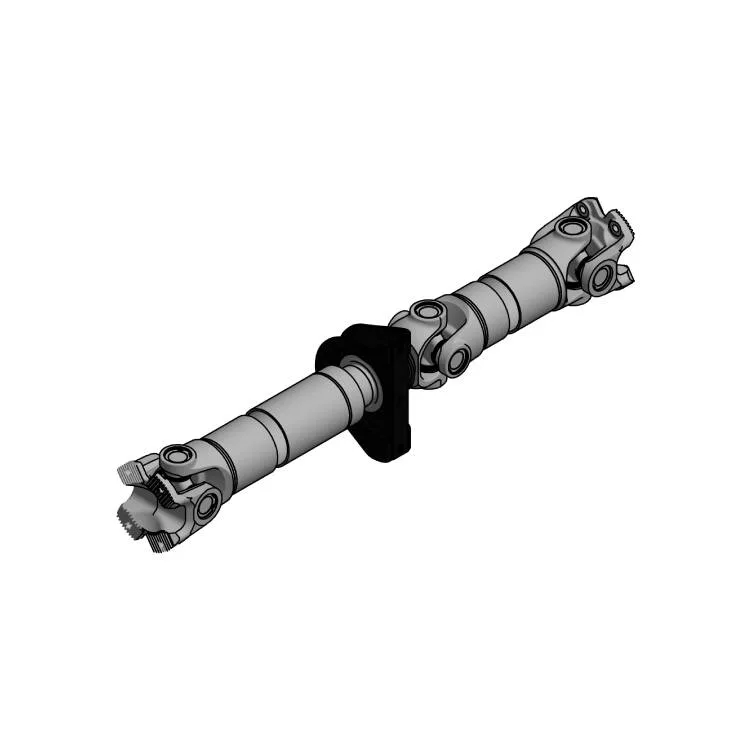

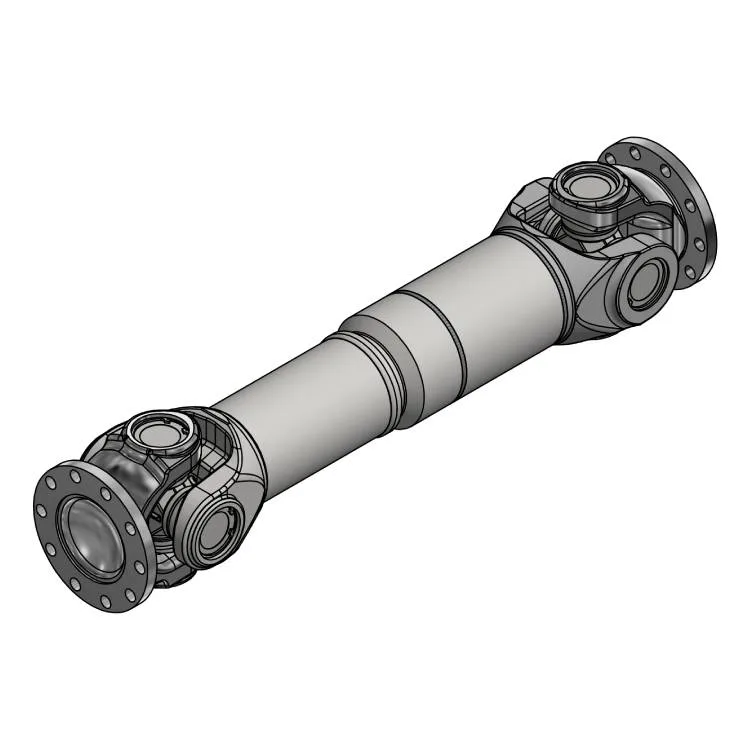

Series 201 – Series 301 – Series 501

Technical Data

TCS torque range: 2,400 Nm – 52,000 Nm

Flange diameters: from 90 mm to 285 mm (DIN – SAE – CROSS-TOOTH)

Operating angle up to 35° (44° for some series)
Maintenance-free or relubricatable configuration

Possible transmission profile :

• short and extra-short sliding transmission
• tubular sliding transmission
• fixed tubular drive
• single joint
• double joint
• bearing transmission
• homokinetic and double homokinetic transmission

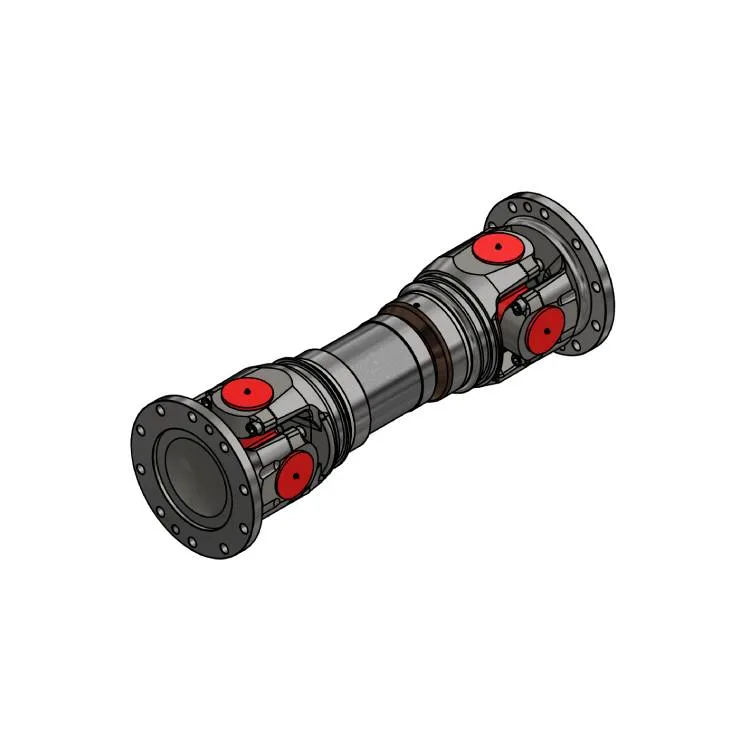

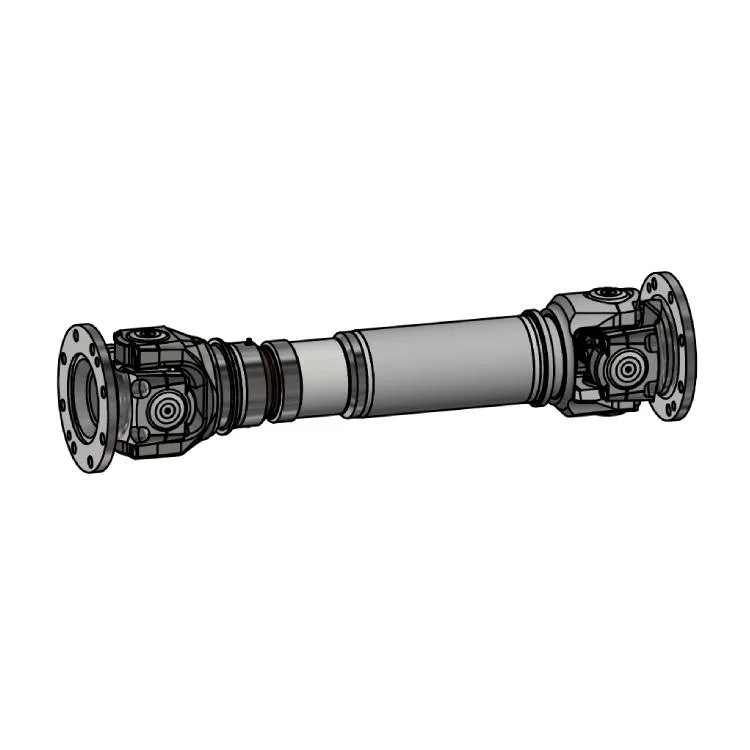

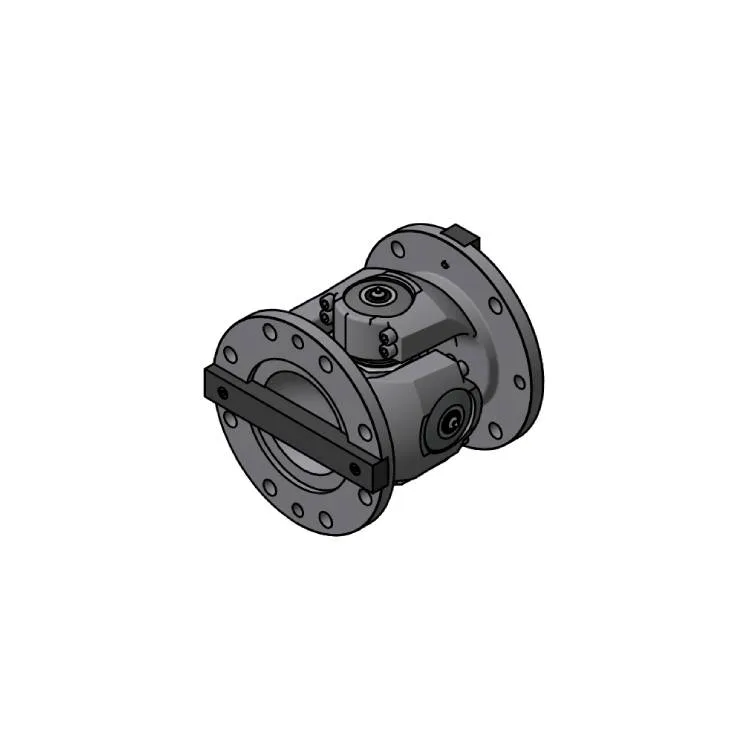

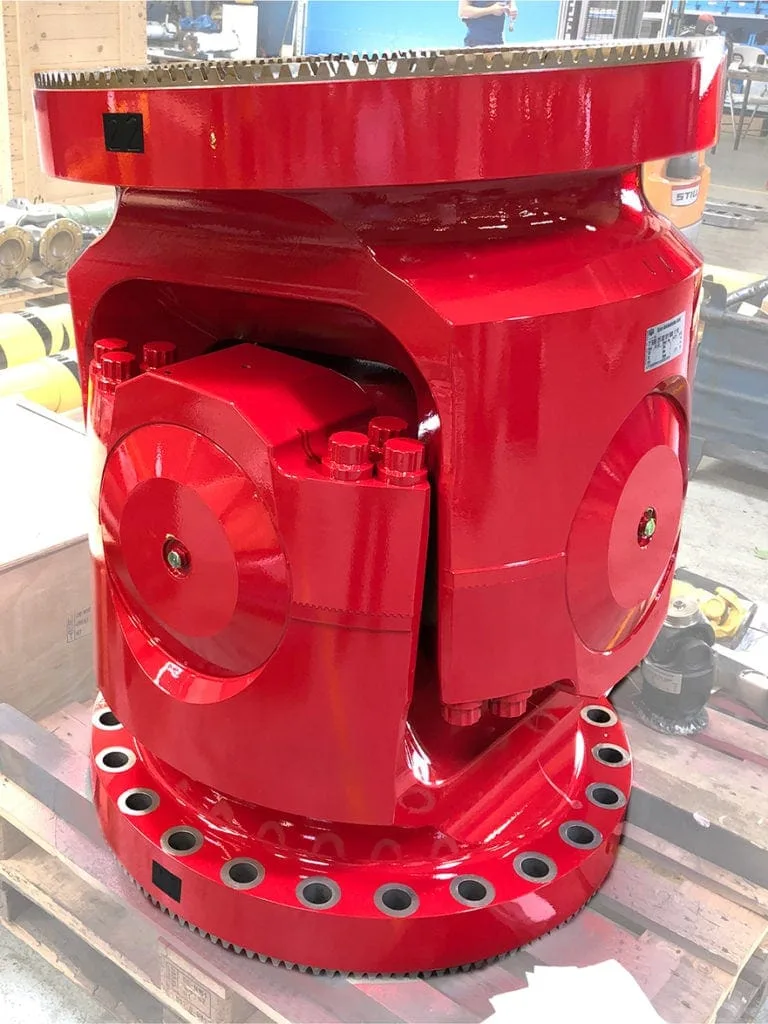

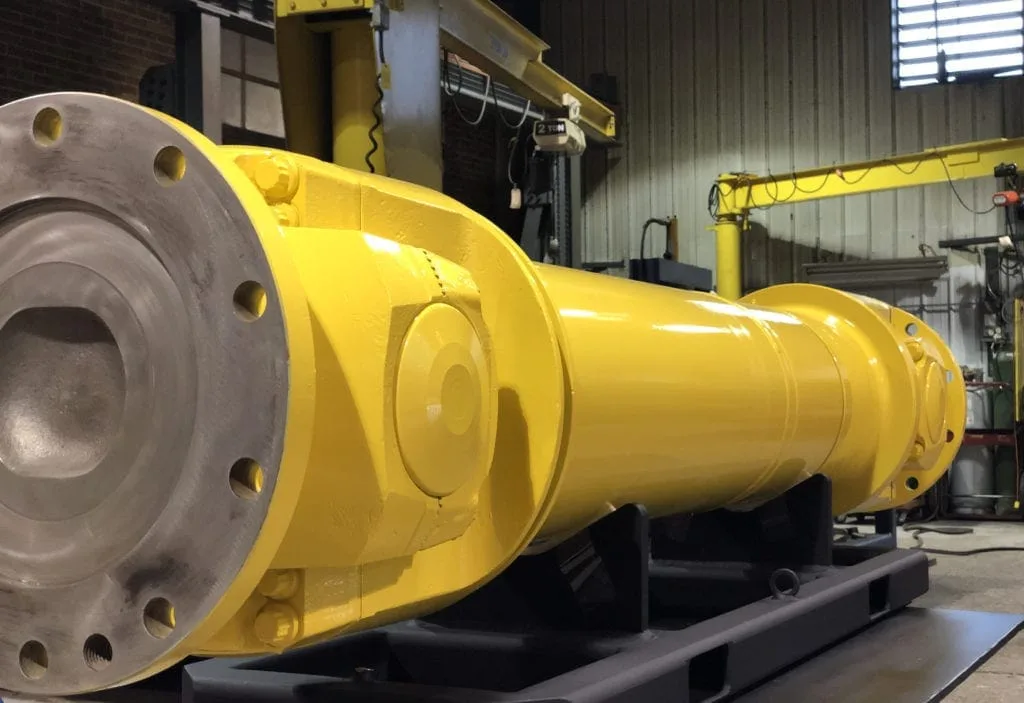

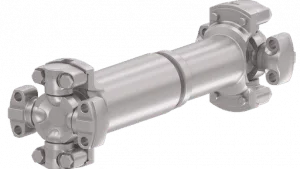

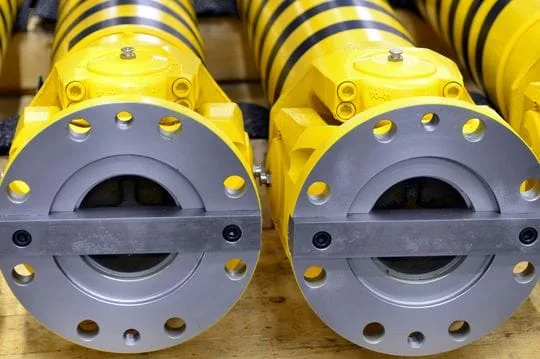

Series 901 – Series 921 – Series 981

Technical Data

TCS torque range: up to 600,000 Nm

Flange diameters: from 225 mm to 480 mm (DIN – HIRTH – CLAVETTE FRONTALE)

Operating angle up to 35

Maintenance-free or relubricatable configuration

Universal-Joint with trigger guard

Possible transmission profile :

• short and extra-short sliding transmission
• tubular sliding transmission
• fixed tubular drive
• single joint
• double joint
• bearing transmission

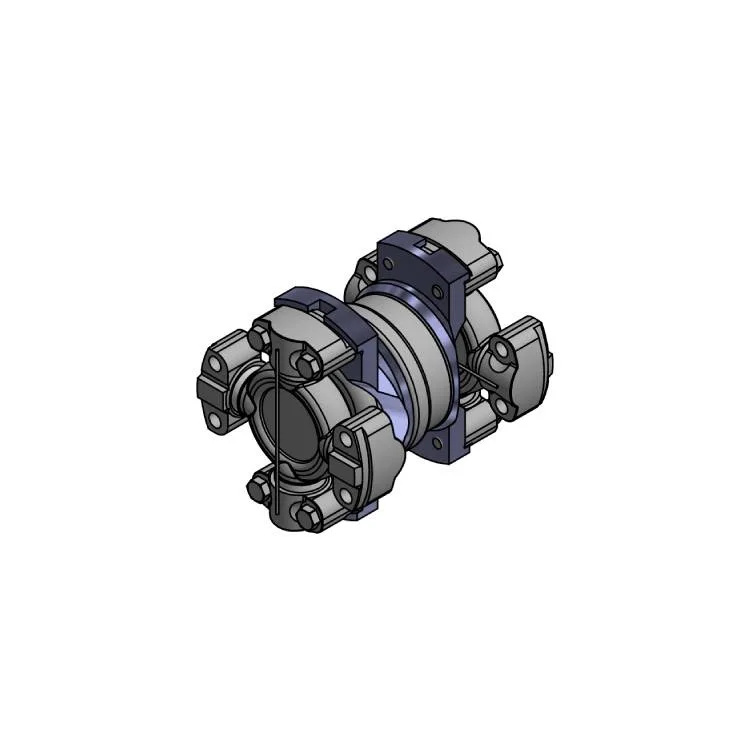

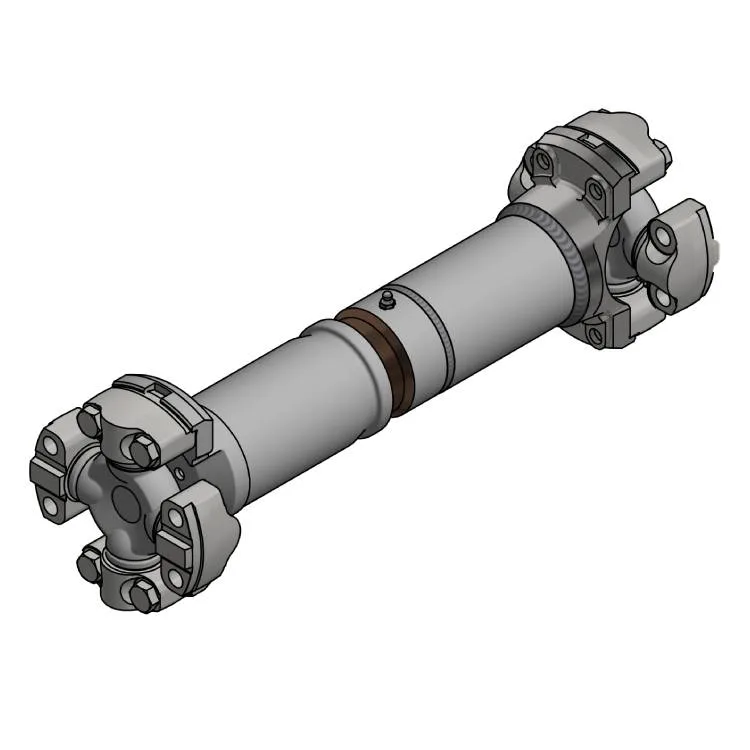

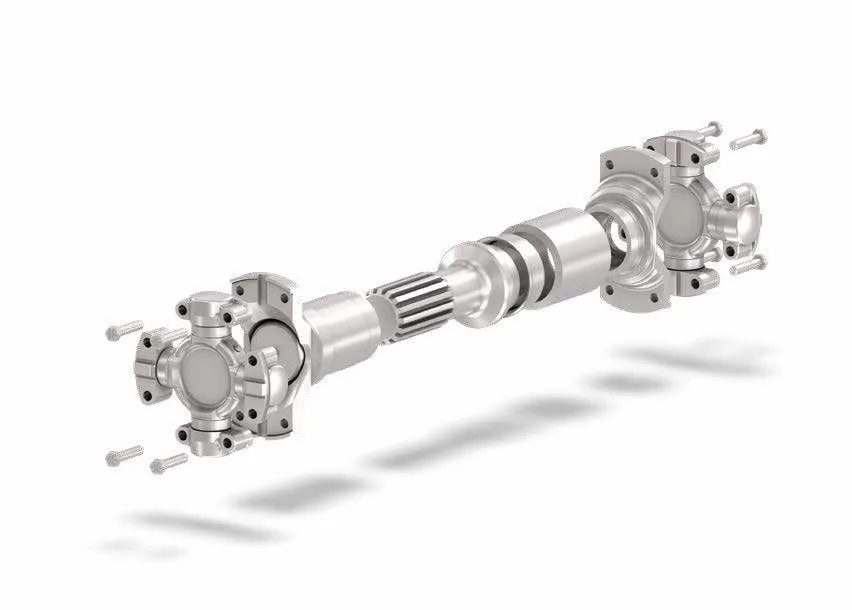

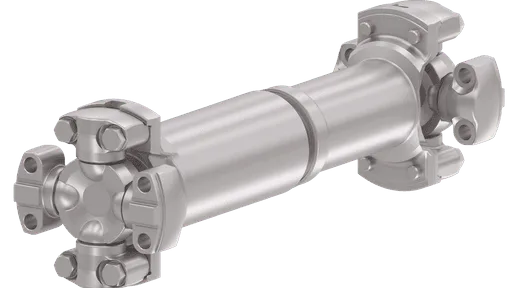

880 series – mechanics

Technical Data

TCS torque range: 2,400 Nm – 52,000 Nm

Flange diameters: from 90 mm to 285 mm (DIN – SAE – CROSS-TOOTH)

Operating angle up to 35° (44° for some series)
Maintenance-free or relubricatable configuration

Possible transmission profile :

• short and extra-short sliding transmission
• tubular sliding transmission
• fixed tubular drive
• single joint
• double joint
• bearing transmission
• homokinetic and double homokinetic transmission
