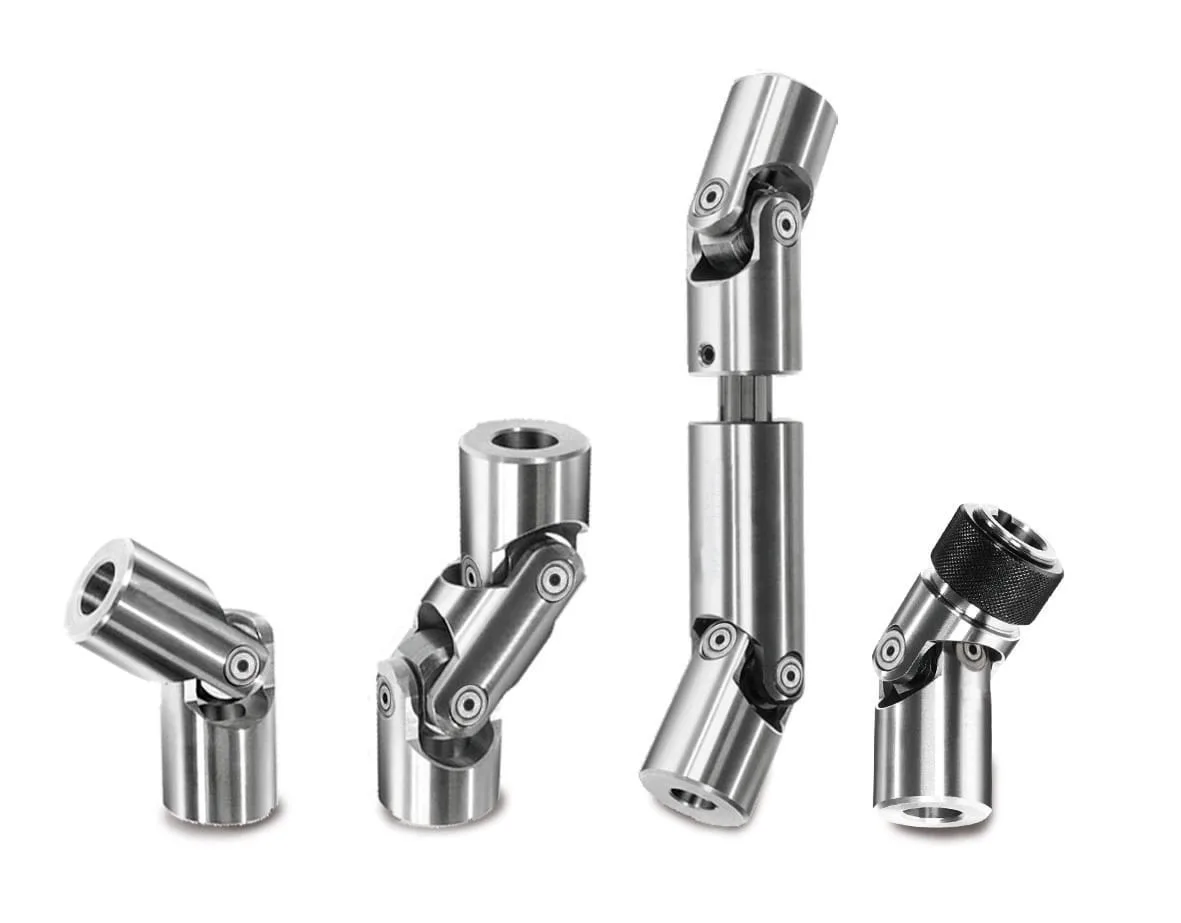

Single joint – double joint – sliding transmission

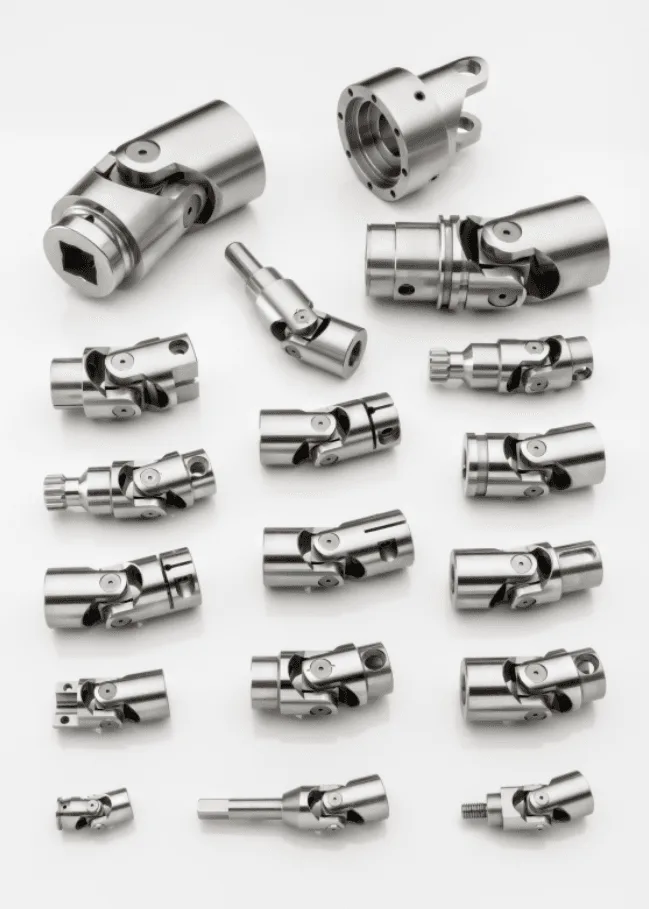

Numerous configurations

Bearing type according to torque to be transmitted and speed of rotation :

• Crimped axle for light loads
• Hardened ring
• Needle bearing for high speeds (up to 4000 rpm)
• Stainless steel crimped axle for humid environments
• Zinc-plated needle bearings for damp environments and high speeds

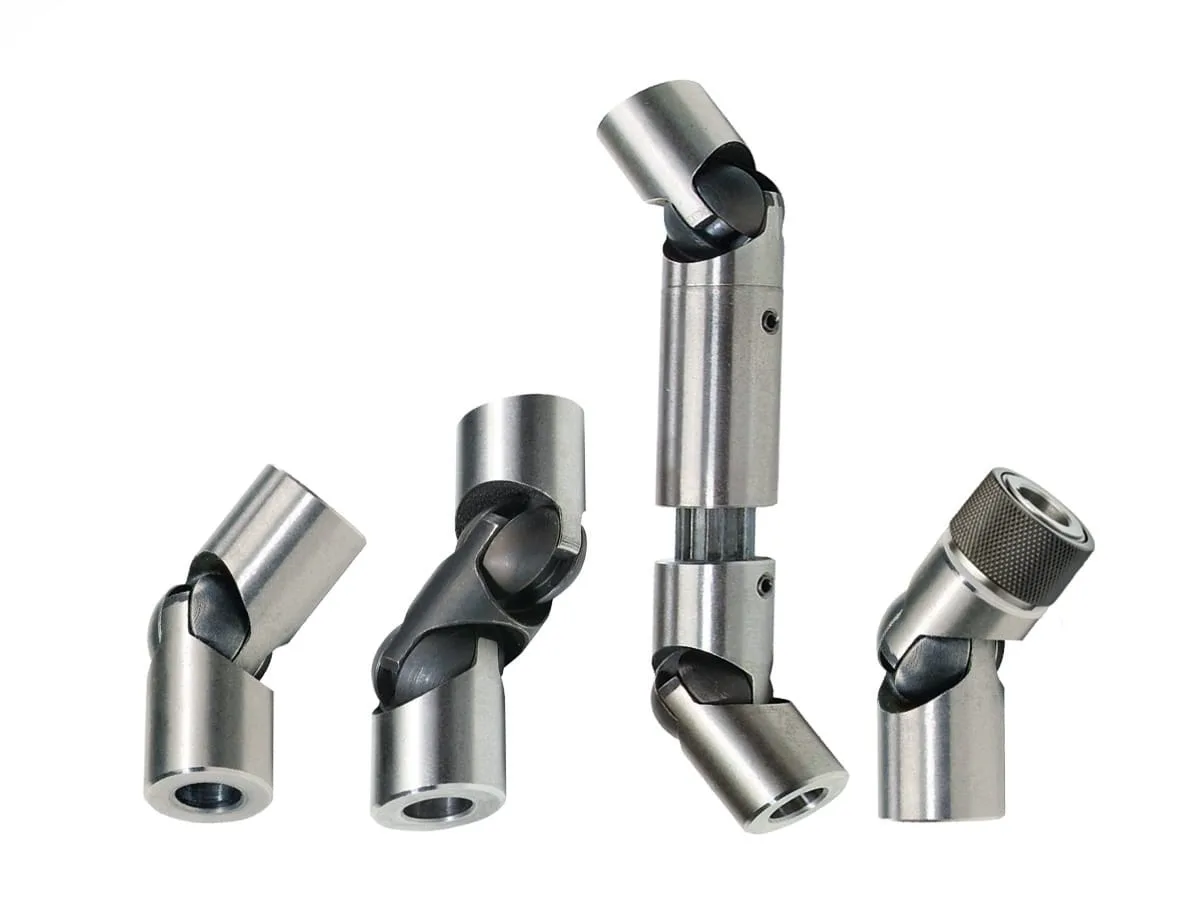

• Spheroidal plain bearing for high torque at low speed

Technical Data

• Max. mechanical angle 45°.
• Standard DIN 808 – DIN 808/7551
• PR80 steel
• Stainless steel X5CrNi 1810 (304L)
