Series 1 single universal joint – crimped axle
- Crimped pins
- material steel PR80
- maximum mechanical angle 45°.
- max. rotation speed 800 rpm
- Custom manufacturing available
Need technical advice or a quote?
Apply online, it’s free and easy.

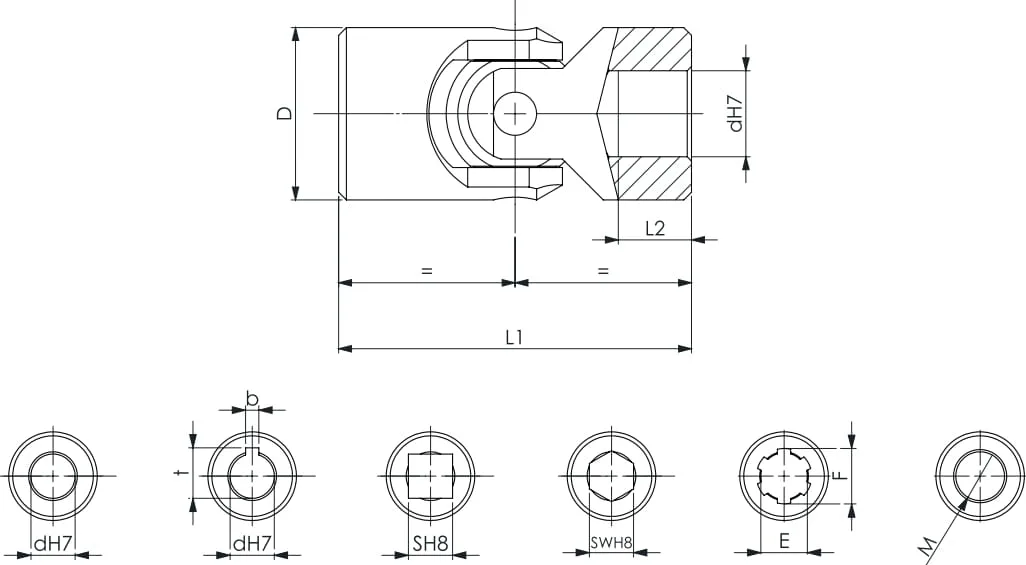

Click on the image for a larger view.
| TYPE | D | d | Lg mini | Lg maxi | L2 | a | b | S Square | Hexa SW |
|---|---|---|---|---|---|---|---|---|---|
| 1.10.4 | 10 | 5 | 40 | 40 | 13 | - | - | - | 5 |
| 1.13.4 | 13 | 6 | 40 | 50 | 13 | - | - | 6 | - |
| 1.16.4 | 16 | 8 | 40 | 40 | 10 | 2 | 9 | 8 | 8 |
| 1.20.4 | 20 | 10 | 45 | 62 | 10 | 3 | 11.4 | 10 | 10 |
| 1.22.4 | 22 | 10 | 45 | 62 | 11 | 4 | 13.8 | - | - |
| 1.25.4 | 25 | 12 | 50 | 74 | 11 | 4 | 13.8 | 12 | 12 |
| 1.29.4 | 29 | 14 | 56 | 74 | 13 | 5 | 16.3 | 14 | 14 |
| 1.32.4 | 32 | 16 | 65 | 86 | 15 | 5 | 18.3 | 16 | 16 |
| 1.37.4 | 37 | 18 | 72 | 82 | 17 | 6 | 20.8 | 18 | 18 |
| 1.40.4 | 40 | 20 | 82 | 108 | 19 | 6 | 22.8 | 20 | 20 |
| 1.47.4 | 47 | 22 | 95 | 108 | 22 | 6 | 24.8 | 22 | 22 |
| 1.45.4 | 45 | 25 | 108 | 108 | 22 | - | - | - | - |
| 1.50.4 | 50 | 25 | 108 | 132 | 27 | 8 | 28.3 | 25 | 25 |
| 1.58.4 | 58 | 30 | 122 | 166 | 30 | 8 | 33.3 | 30 | 30 |
Identical to : 100AL, L10, 101AL, U813A, L13, 102AL, U816A, L16, 103AL, U820A, L20, 104AL, U825A, L25, 105AL, L29, 106AL, U832A, L32, 107AL, L37, 108AL, L40, 109AL, L47, 110AL, L50, 111AL, L58,
