Double precision seal series 3 – inner ring
- hardened inner ring
- material steel PR80
- maximum mechanical angle 45°.
- max. rotation speed 1000 rpm
- Custom manufacturing available
Need technical advice or a quote?
Apply online, it’s free and easy.

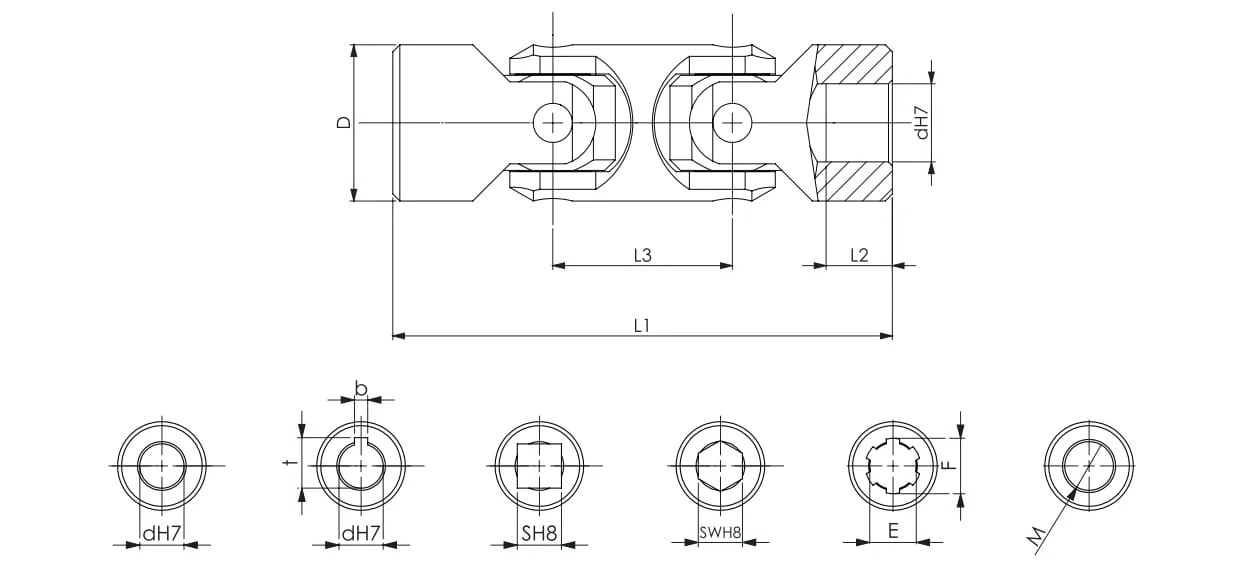

Click on the image for a larger view.
| Type | D | d | L3 | L1 | L4 | C | a | b | S Square | Hexa SW | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.16.5 | 16 | 6 | 56 | 17 | 22 | 8 | 2 | 7 | 6 | 6 | 0,08 |
| 3.16.5 | 16 | 8 | 62 | 20 | 22 | 11 | 2 | 9 | 8 | 8 | 0,08 |
| 3.16.5 | 16 | 10 | 74 | 26 | 22 | 15 | 3 | 11,4 | 8 | 8 | 0,08 |
| 3.22.5 | 22 | 10 | 74 | 24 | 26 | 12 | 3 | 11,4 | 10 | 10 | 0,15 |
| 3.22.5 | 22 | 12 | 88 | 31 | 26 | 18 | 4 | 13,8 | 10 | 10 | 0,08 |
| 3.25.5 | 25 | 12 | 86 | 28 | 30 | 13 | 4 | 13,8 | 12 | 12 | 0,25 |
| 3.25.5 | 25 | 16 | 104 | 37 | 30 | 21 | 5 | 18,3 | 12 | 12 | 0,3 |
| 3.28.5 | 28 | 14 | 96 | 30 | 36 | 14 | 5 | 16,3 | 14 | 14 | 0,4 |
| 3.32.5 | 32 | 16 | 105 | 34 | 37 | 16 | 5 | 18,3 | 16 | 16 | 0,45 |
| 3.32.5 | 32 | 20 | 123 | 43 | 37 | 24 | 6 | 22,8 | 16 | 16 | 0,5 |
| 3.36.5 | 36 | 18 | 114 | 37 | 40 | 17 | 6 | 20,3 | 18 | 18 | 0,7 |
| 3.42.5 | 42 | 20 | 129 | 41 | 47 | 18 | 6 | 22,8 | 20 | 20 | 0,6 |
| 3.42.5 | 42 | 25 | 155 | 54 | 47 | 31 | 8 | 28,3 | 20 | 20 | 0,5 |
| 3.45.5 | 45 | 22 | 145 | 47,5 | 50 | 22 | 6 | 24,8 | 22 | 22 | 1,55 |
| 3.50.5 | 50 | 25 | 163 | 54 | 55 | 26 | 8 | 28,3 | 25 | 25 | 2 |
| 3.50.5 | 50 | 30 | 187 | 66 | 55 | 38 | 8 | 33,3 | 25 | 25 | 1,7 |
| 3.58.5 | 58 | 30 | 190 | 61 | 68 | 29 | 8 | 33,3 | 30 | 30 | 2,9 |
| 3.58.5 | 58 | 32 | 198 | 65 | 68 | 33 | 10 | 35,3 | 30 | 30 | 3 |
| 3.70.5 | 70 | 35 | 212 | 70 | 72 | 33 | 10 | 38,3 | ** | ** | 4,75 |
| 3.70.5 | 70 | 40 | 238 | 83 | 72 | 46 | 12 | 43,3 | ** | ** | 4,3 |
| 3.80.5 | 80 | 40 | 245 | 80 | 85 | 38 | 12 | 43,3 | ** | ** | 7,2 |
| 3.95.5 | 95 | 50 | 290 | 95 | 100 | 46 | 14 | 53,8 | ** | ** | 12 |
Identical to : GD01-A-6/6, GU01ED, GD02-A-8/8, 23410-08060, GU02ED, GU03EBD, GD03-A-10/10, 23410-10074, GU03ED, GU04EBD, GD04-A-12/12, GU04ED, GU1EBD, GD05-A-14/14, 23410-12088, GU05ED, GD1-A-16/16, 23410-16104, GU1ED, GU3EBD, GD2-A-18/18, GU2ED, GD3-A-20/20, 23410-20124, GU3ED, GU5EBD, GD4-A-22/22, GU4ED, GD5-A-25/25, 23410-25156, GU5ED, GU6EBD, GD61-A-32/32, GU6ED, GD6-A-30/30, 23410-32188, GU6ED1, GD7-A-35/35, GU7ED, GU8EBD, GD8-A-40/40, GU8ED, GD9-A-50/50, GU9ED
